Description
Dimensions: 69 7/8 H x 32 3/4 W x 31 D
APPEARANCE
Case Color |
Gray |
Color Appearance |
Fingerprint Resistant Stainless |
Counter-Depth Design |
Yes |
Door Stops |
Yes |
Door Swing |
French Door |
Exterior Design |
Contoured Crown Doors |
Handle Color |
Stainless Steel Appearance |
Handle Design |
Designer Style |
Hidden Door Hinge(s) |
Yes |
Textured Steel Case |
Case Only – Dark Gray |
CAPACITY
Freezer Capacity |
5.01 cu ft |
Fresh Food Capacity |
12.5 cu ft |
Total Capacity (cubic feet) |
17.5 cu ft |
FEATURES
Configuration |
French Door |
Control Type |
External Electronic Temperature Controls
Digital Temperature Display |
Defrost Type |
Frost Guard |

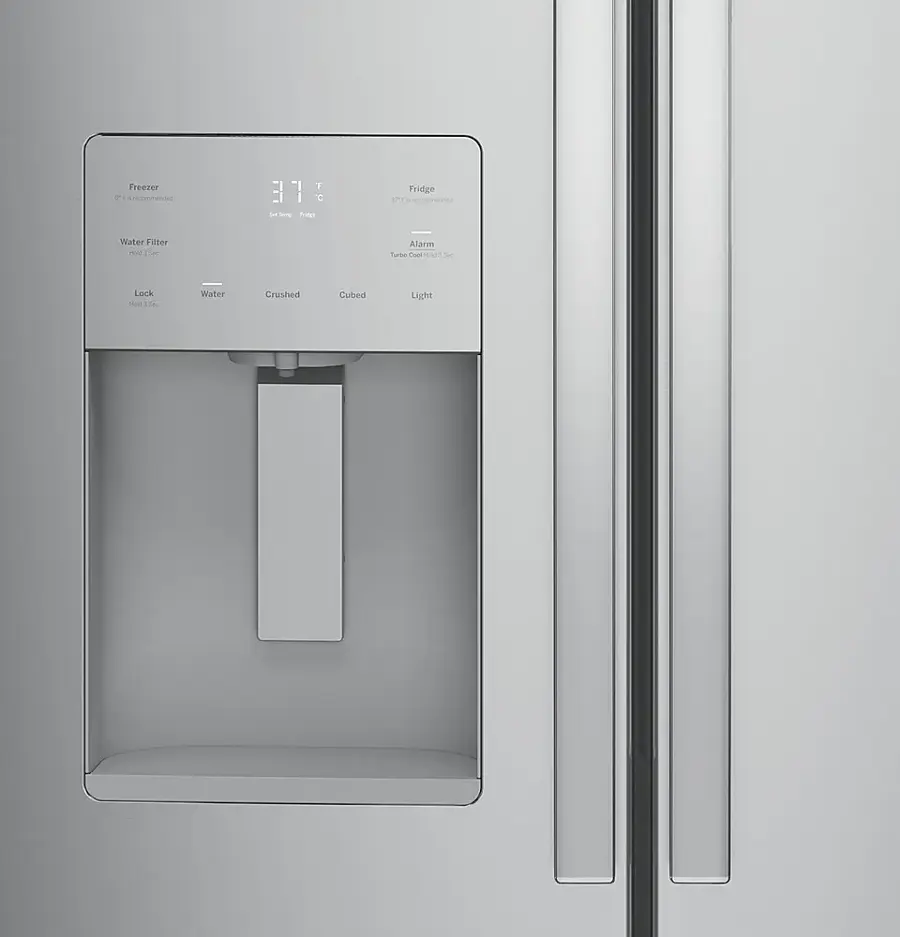

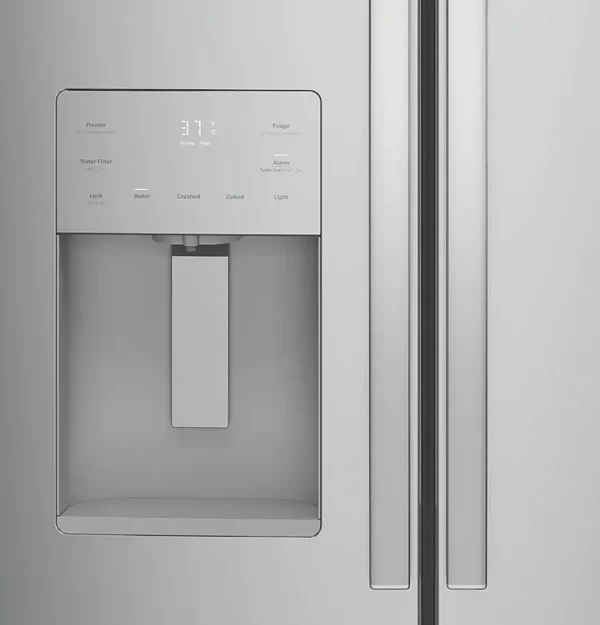

Dispenser Features |
LED Dispenser Light
Water Filter Indicator Light |
Dispenser |
External Water
Cubes, Crushed Ice and Chilled Water |
Door Alarm |
Yes |
Door Liner |
HIPS |
Exterior Style |
Counter-Depth |
Filter Location |
Upper right corner |
Freezer Features |
Interior Lighting – LED |

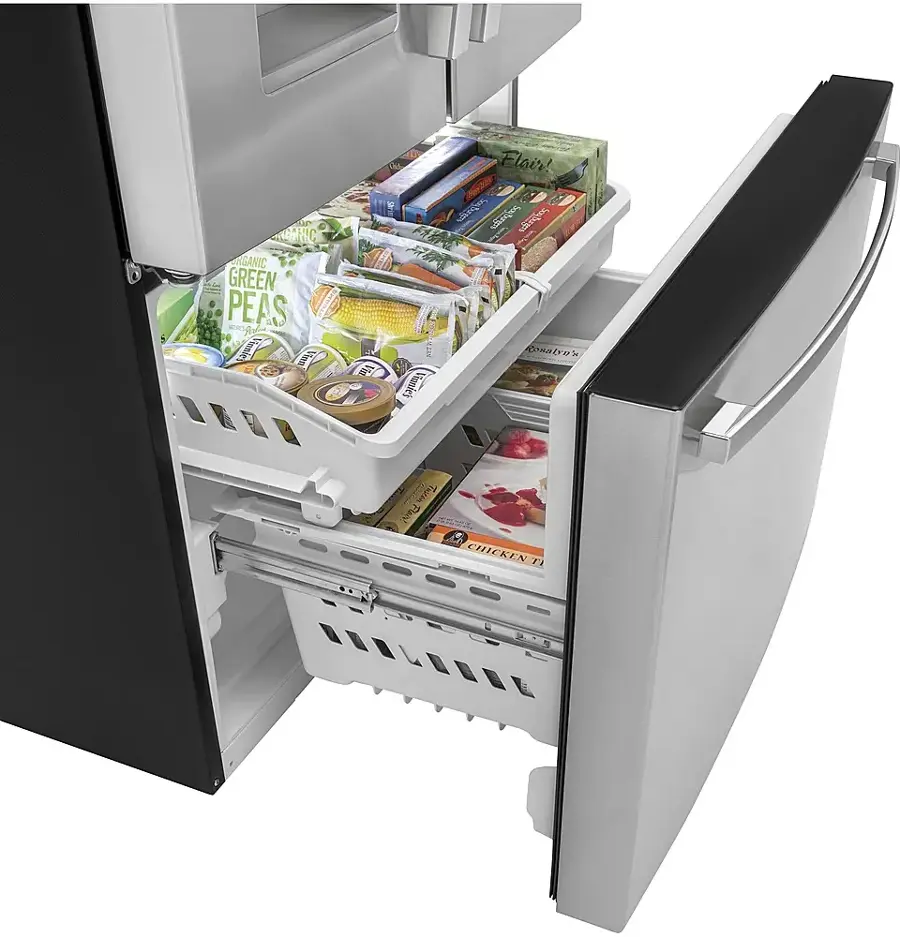

Freezer Storage Baskets |
2 Total
1 Full-Width, Full-Extension Plastic |

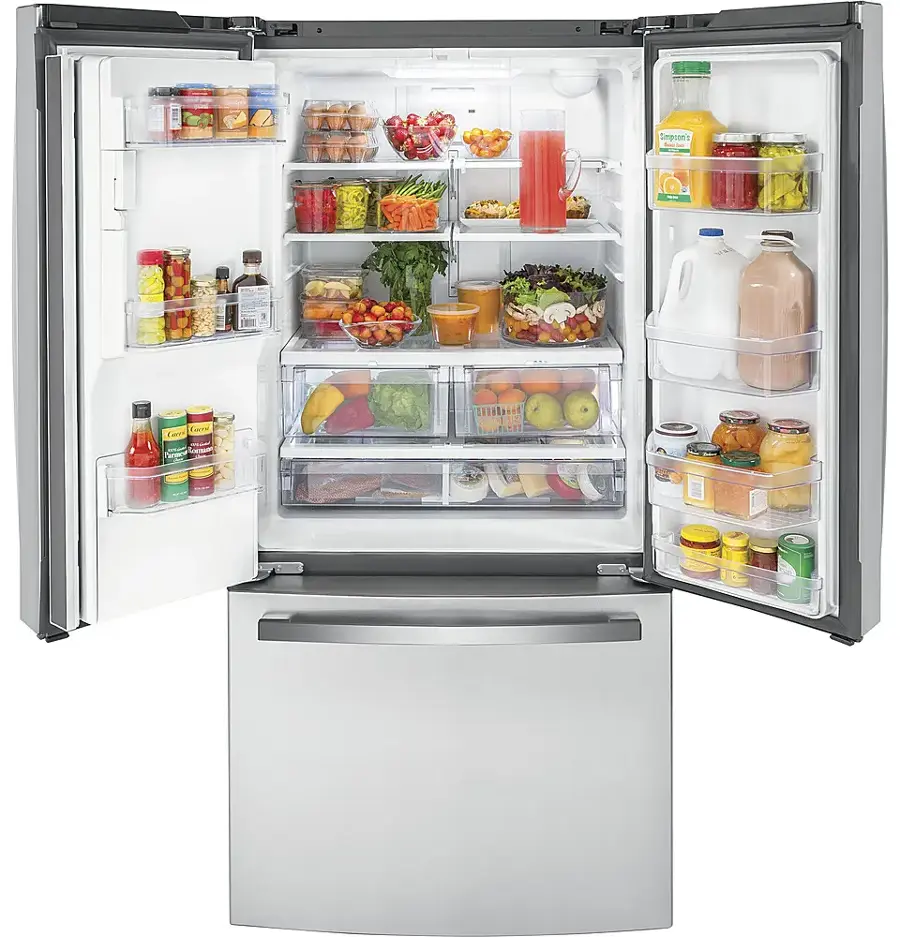

Fresh Food Cabinet Drawers |
Multi-Level Drawers
2 Humidity Controlled Drawers
1 Full-Width, Adjustable Temperature Drawer |
Fresh Food Cabinet Shelves |
5 Total
Glass
4 Split Adjustable
1 Quick Space Shelf |
Fresh Food Door Bins |
7 Clear Look
3 Adjustable with Gallon Storage
4 Fixed |
Fresh Food Features |
Interior Lighting – Dual Level LED |
Icemaker |
Factory-Installed |
Leveling System |
2 Point Front Adjustable |
Number of Doors |
3 |
OU Certified |
OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately |
Performance Features |
Easily Removable Door Gaskets |
Product Type |
French-Door Refrigerator
Bottom Freezer Refrigerator
Counter Depth Refrigerator |
Refrigerant Type |
R600a |
Sabbath Mode |
Optional |
Temperature Display |
External Digital |
Temperature Management Features |
Turbo Cool setting
Multiflow Air System with Electronic Sensors |
Water Filtration |
GE Water Filtration (XWFE Filter)
Water Filter Indicator Light |
WiFi Connect |
Optional (Requires part no. PBX23W00Y1) |
POWER / RATINGS
Energy Consumption (kWh/year) |
613 |
Volts/Hertz/Amps |
120v; 60Hz; 15A |
WARRANTY
Labor Warranty |
Limited 1-year entire appliance |
Parts Warranty |
Limited 1-year entire appliance |
Warranty Notes |
See written warranty for full details |
WEIGHTS & DIMENSIONS
Approximate Shipping Weight |
273.5 lb |
Back Air Clearances |
2 in |
Case Depth Without Door |
24 1/8 in |
Depth with Door Open 90° |
42 in |
Depth Without Handle |
29 in |
Height to Top of Case |
68 5/8 in |
Height to Top of Hinge |
69 3/4 in |
Net Weight |
253.5 lb |
Overall Depth |
31 in |
Overall Height |
69 7/8 in |
Overall Width |
32 3/4 in |
Side Air Clearances |
1/8 in |
Top Air Clearances |
1 in |
Width w/Door Open 90 Degrees Incl. Handle |
40 1/2 in |
